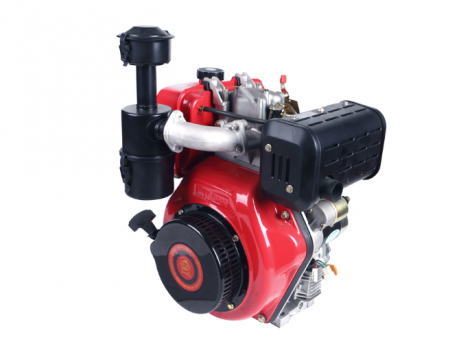

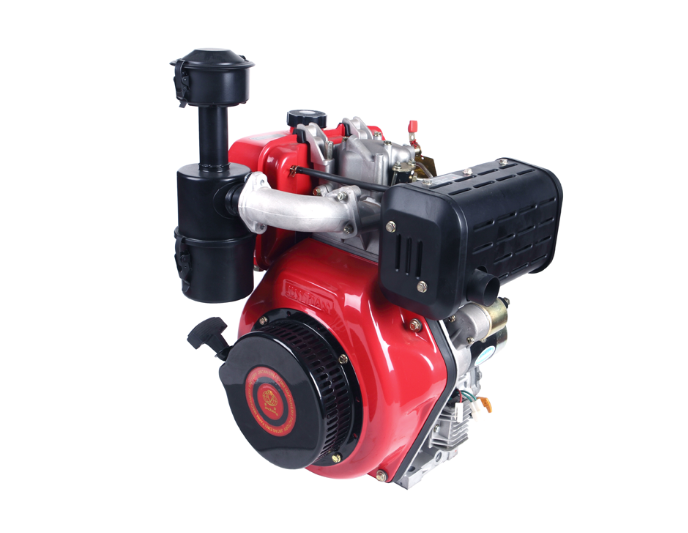

TYPE | SINGLE CYLINDER,HORIZONTAL,4-STROKE,AIR COOLED DIESEL ENGINE |
BORE*STROKE(MM) | 92*75 |
DISPLACEMENT(CC) | 498 |
COMPRESSION RATIO | 20：01 |
ENGINE SPEED(RPM) | 1500/1800 |
RATED OUTPUT(KW) | 8.1/8.7 |
FUEL TANK CAPACITY(L) | 3.5 |
LUBE CAPACITY(L) | 1.65 |
CRANKSHAFT DIRECTION | COUNTERCLOCKWISE FROM FLYWHEEL END |
COOLING TYPE | FORCE AIR-COOLED |
LUBRICATION TYPE | PRESSURE SPLASH |
STARTING SYSTEM | RECOIL MANUAL ATART/OPTIONAL ELECTRIC START |
PACKING SIZE(MM) | 510*470*580 |
NET WEGHT(KG) | 48.7 |
20FT CONTAINER(PCS) | 200 |
